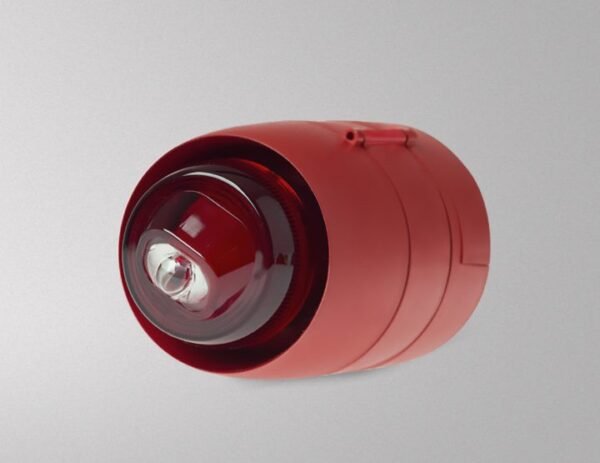

VELOX Sounder & Beacon – 41000 SERIES

Key Features

Approved – EN54-3 and EN54 part 23
Built-in Short Circuit Isolator and EN54-17 certified.
Automatic or Manual Addressing functions.
Powered from the same fire detection loop
High-Intensity White Flash
0.5Hz and 0.1 Hz flash rate available via the DIP switch
32 tones plus a selectable override tone
Deep-Base IP65 versions
Features base locking system as standard
Unique twist and lock bayonet mounting system

The VELOX Sounder & Beacon 41000 range uses advanced microprocessor-controlled technology. It runs fully on loop power from VELOX fire alarm control panels. Each device includes an in-built isolator to ensure high reliability and system integrity.

This range complies with EN54-3, EN54-23, and EN54-17 standards. You can connect it using 1.5mm² cable across a 2 km loop, supporting a large number of devices with a single wiring run.

Since the system is loop powered, it eliminates the need for separate power supplies. This cuts installation costs, especially in setups with many beacons or sounder/beacons.

The VELOX Sounder & Beacon also supports automatic addressing. The control panel assigns each device a unique address to avoid duplication. If needed, you can use the VELOX detector programming tool for manual, non-sequential addressing.
