VELOX 4000 RANGE

The VELOX 4000 panels redefine modern fire detection by seamlessly integrating audio and fire safety systems into a single, intelligent solution. Fully certified to EN54 parts 2 and 4, the VELOX 4000 series builds on decades of innovation, supporting 1 to 8 loops via plug-in loop driver boards.

Powered by ATEIS’s legendary public address and evacuation systems, VELOX 4000 delivers up to 48 simultaneous high-resolution audio channels at 192 Kbit/sec. Its evacuation network supports up to 8,192 speaker zones, each capable of handling a 1,000-watt load—unmatched in the industry.

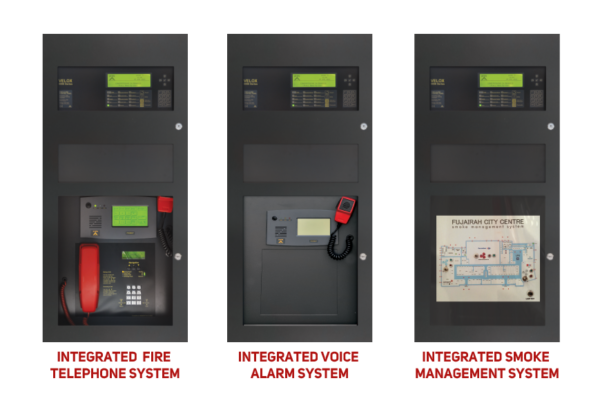

Each panel includes a fully integrated addressable fireman’s telephone system supporting up to 256 circuits for jack or handset communication. The system connects up to 240 devices per loop, extending up to 2 km over a standard two-core copper cable.

You can network up to 200 panels in a peer-to-peer configuration across a 20 km VELOX redundant network. Fiber optic support extends the range even further—2 km over multimode and 20 km over single-mode fiber.

VELOX 4000 also offers unmatched customization, including standard or tailor-made LED mimic panels and smoke management controls—setting a new benchmark for design flexibility and system control.
