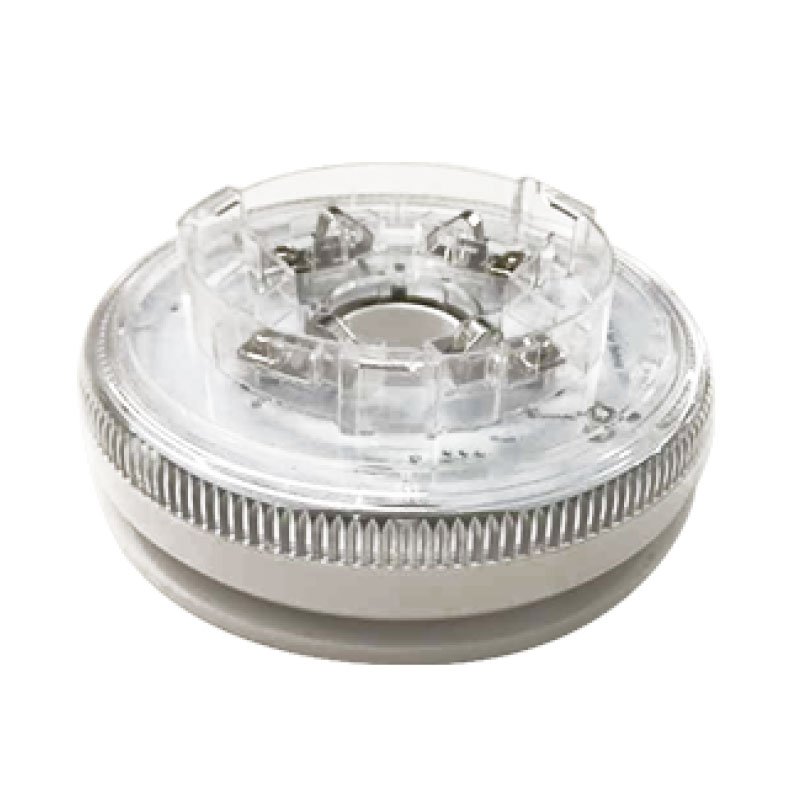

Sounder Base A9097B

Features

Meet EN54-3;
It is installed by rotating, it can be installed conveniently and reliably;
It uses multiple super bright red LEDs as light sources for visual display, ensuring a striking display effect；
Set the detector base and Sounder beacon as a whole, it can be equipped with A9030T smoke detector and A9020T heat detector, single point connection for detector, sounder and LED beacon (saving on both time and installation costs) , debugged and maintained conveniently

The intelligent Sounder Beacon Base A9097B is addressable, low power consumption and loop powered to reduce installation cost. The Intelligent Sounder Beacon Base can be used with a detector. The detector can be mounted directly on the base.

It can be used with a bus-type fire alarm control panel. After receiving a start command given by the fire alarm control panel following an accident, the Sounder Beacon Base will begin to work. At this moment, the Sounder Beacon Base will give a dazzling visual alarm signal and a harsh audible alarm signal, to remind the people on the scene of the accident, the fact that a fire has occurred on the site, quickly and necessity to take related evacuation measures, thus preventing the fire accident from becoming a major one.

The Sounder Beacon Base A9097B may be used to give audible alarms and flashing alarms at the scenes of accidents. It is applicable to places like high-rise residential buildings, public places, hotels, amusement buildings, factories, shopping centers,hospitals, schools, office buildings and stock exchanges, and particularly to the places with a low visibility or the possibility of generation of smoke.

Table: Sound Level Data(EN54-3 approved)

Tone:667Hz-2000Hz@0.21Hz,Max Volume,dB(A)@1m

Angle	Horizontal		Vertical
Voltage	20V	28V	20V	28V
15°	82.0	85.0	82.7	85.4
45°	80.0	83.5	81.8	84.7
75°	82.1	85.3	80.2	83.3
105°	83.0	85.3	84.6	87.4
135°	83.0	85.9	81.2	83.7
165°	83.2	86.0	81.9	84.7

Loop input	DC24V(20-28V),≤2mA(monitoring status),≤ mA(alarm status)
Power consumption	≤0.2W@DC24V
Sound Level	See the table”Sound Level Data” in description tab
Flash Color	Red
Ingress Protection Rating	IP21C
Operating Temperature	-10℃ ~ +55℃
Relative Humidity	≤95%, non condensing
Material of Lens/Body	Flame retardant PC/PC+ABS
Dimension	ф115mm×H44mm( with brack et)
Mounting Hole Spacing	45mm ~60mm
Weight	About 169g
