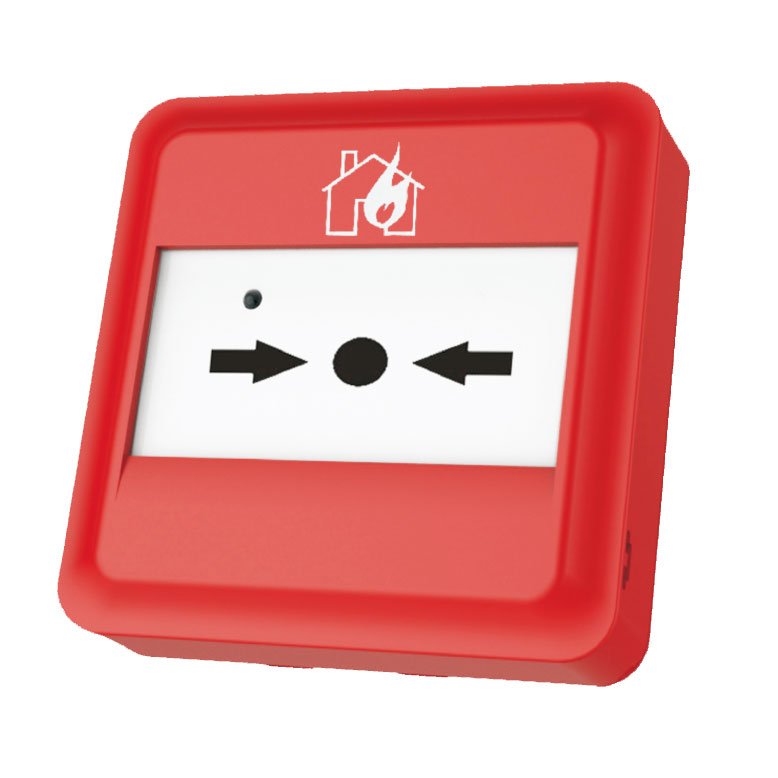

Manual Call Point A9060T
Features
- LPCB and CPR approval;
- Semi-flush or surface mount;
- Lever reusable (non-glass break);
- LED indicator.
The Manual Call Point A9060T (MCP) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points. When the manual fire call point is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The A9060T supports electronic coding, which is more suitable for engineering application convenience.
| Operating Voltage | Loop 24V（18V～28V） |
|---|---|
| Standby Current | <0.3mA |
| Alarm Current | <2mA |
| Indicator | Red alarm indicator flashes when data logging, press |
| Type of Initiating Part | Reusable |
| Initiating Mode | Pressing the frangible element manually |
| Resuming Mode | Manually resumed by a special key |
| Programming Mode | Electronically addressed |
| Address Range | One address within 1～324. |
| Wiring | Polarity-insensitive two-wire |
| Class | Type A, indoors. |
| Ingress Protection Rating | IP43 |
| Environmental Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 90mm×90mm×42mm (overall height) |
| Mounting Hole Distance | 60mm ~ 62.5mm |
| Weight | About 95g |
