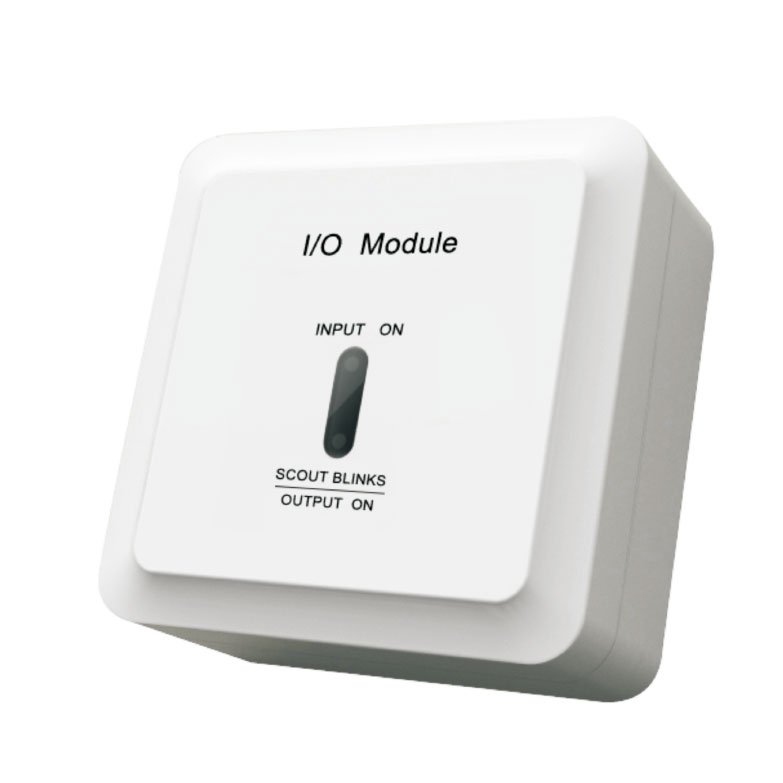

IO Module A9058T
Features
- LPCB & CPR approval;
- Built-in standalone CPU, quick calculating speed;
- Non-polarity two-wire bus to make wiring easy and no need for external 24V supply;
- Connect conventional detector, manual call point or fire hydrant button, and deliver the alarm signal to the controller.
A9058T Addressable IO module can be used with a loop-type fire alarm control panel. Powered by a non-polar by using 2-bus, it’s designed with low power consumption, no need for external 24V supply. The A9058T should be installed on the DZ-9056 base.
| Operating Voltage | Signal Loop 24V(20V～28V) |
|---|---|
| Standby Current | Loop＜1.2mA ; |
| Action Current | Loop＜4mA ; |
| Output Capacity | 2A@DC30V |
| Input Mode Setting | Set by coder F900E |
| Programming Method | Electronically addressed |
| Code Range | One address within 1~324. |
| Indicators | Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit in the output status;Input indicator : remain lit in the alarm or feedback status; |
| Operating Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95% , non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 86mm×86mm×41mm (with base) |
| Mounting Hole Distance | 60.5mm |
| Weight | About 132g (with base) |
| Type of the Base | DZ-9058 |
