IO Module A9056T
Features
- LPCB approval;
- Semi-flush or surface mount;
- Lever reusable (non-glass break);
- LED indicator;
- Full soft addressing, and rewriting through CODER-9001 encoder in site.
The IO module A9056T is used with SEC3002 fire alarm control panel. It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operating normally can be done.
| Operating Voltage | Signal Loop 24V(18V～28V) |
|---|---|
| Standby Current | Loop＜0.8mA ; Power＜2mA |
| Action Current | Loop＜5mA ; Power＜15mA |
| Output Capacity | 1A@DC30V |
| Input Mode Setting | NC or NO input mode can be set by the jumper JP4. |
| Programming Method | Electronically addressed |
| Code Range | One address within 1~324. |
| Indicators | Inspection indicator: l blink once about every 12 |
| Operating Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95% , non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 86mm×86mm×41mm |
| Mounting Hole Distance | 60.5mm |
| Weight | About 148g (with base) |
| Type of the Base | DZ-9056 |
Related products
- Sanjiang

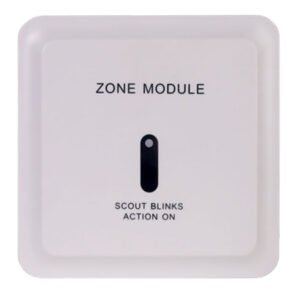

Zone Module A9052T
