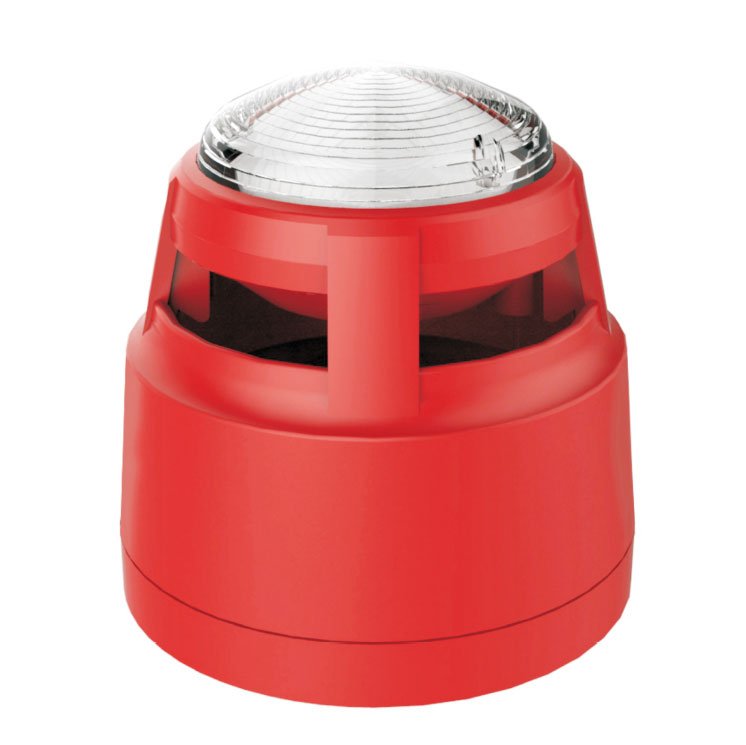

Conventional Sounder Beacon C9091T

Features

LPCB and CPR approval;
Comply with EN54-3 and EN54-23;
Designed with an upper cover and a lower cover and installed on a detector base, it can be installed, com-missioned and maintained conveniently.

Description

C9091T Conventional Sounder Beacon can give audible and visual alarms after being connected to a DC24V power supply. It can be used with a bus-type ﬁre alarm control panel through an output module. After receiving a start command given by the ﬁre alarm control panel following an accident, the output module will start the Sounder Beacon.
After that, the Sounder Beacon will give a dazzling visual alarm signal and a harsh audi-ble alarm signal to remind the persons on the scene of the accident of the fact that a ﬁre has occurred on the site quickly and the necessity to take related evacuation measures,thus preventing the ﬁre accident from becoming a major one.
The Conventional Sounder Beacon may be used to give audible alarms and visual alarms at the scenes of accidents.It is applicable to places like high-rise residential buildings, public places,hotels, amusement buildings,factories, shopping centers, hospitals, schools, oﬃce buildings and stock exchanges, and particularly to the places with a low visibility or the possibility of generation of smoke.

Fig. 1 Ceiling mount coverage volume

Fig. 2 Wall mount coverage volume

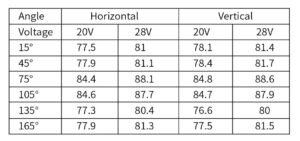

Table:Sound Level Data(EN54-3 approved)
Tone1:667Hz-2000Hz@0.22Hz,Max Volume,dB(A)@1m

Operating Voltage	Power: 24VDC (20V~28V)
Operating Current	≤100mA
EN54-23 Coverage	C-3-8/W-2.4-6(coverage volume see the following ﬁgures)
Flash Color and Frequency	White, 0.5Hz
Light Output Synchronization	Meets EN54-23
Sound Level	See the following table”Sound Level Data”
Ingress Protection Rating	IP21C
Operating Temperature	-10℃ ~ +55℃
Relative Humidity	≤95%, non condensing
Material of Lens/Body	Flame retardant PC/ABS
Dimension	ф100mm×100.5mm( with the base)
Mounting Hole Spacing	45mm ~ 70mm
Weight	About 266g (with the base)
